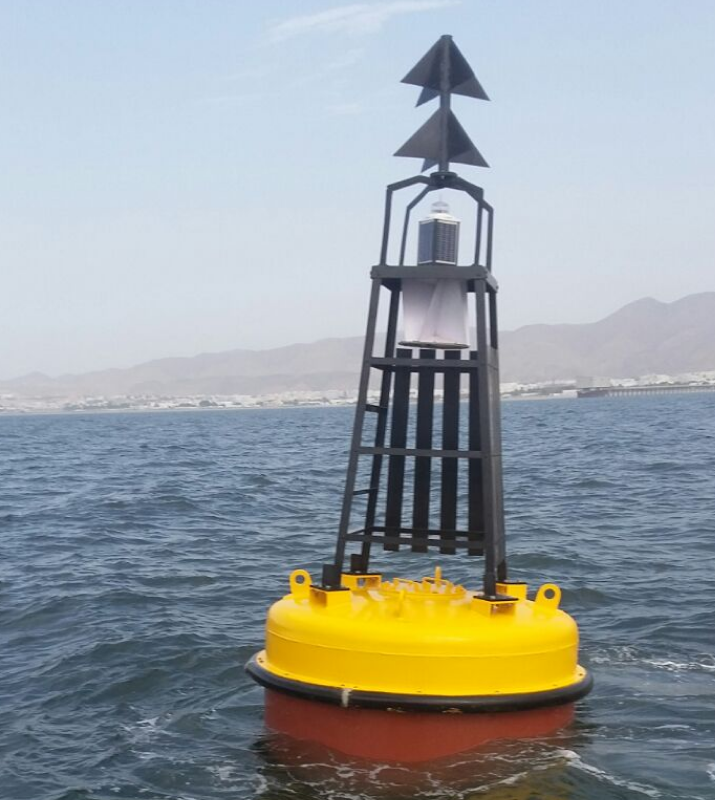

Tritonbuoys manufacture a diverse selection of steel navigation buoys, ranging from 1m to 4.5m in diameter, with focal planes reaching up to 8m. Each buoy can be highly customized to meet specific needs.
Tritonbuoys steel navigation buoys are crafted from high-grade steel by skilled welders, ensuring top-notch quality. Each buoy is also coated with premium marine coatings to maximize durability and extend service life.
| General Characteristics | |
| Diameter | 1m to 4.5m |
| Focal Plane Height | Customised to customer requirements |
| Material | Mild Steel S275JR, A36 or other grades based on customer requirements |
| Wall Thickness | > 6mm Customisable |
| Galvanizing (Tower section) | 85 Microns DFT (or greater based on customer requirements) |
| Painting | High quality marine paint 450 microns DFT (or specifications based on customer requirements) |
| Lifting Eyes | 4 nos |
| Mooring Eyes | 4 nos |
| Fender | Rubber "D" Fender |
| Ballast | Concrete and/or Steel |
| Colours | Green, Red, Yellow, White as per IALA; Customisation Available. |
| Options Available | |
| Day Marks | |
| Navigation Lanterns | |
| Radar Reflector | |
| Mooring System | |
|
* Specifications subject to change or variation without notice ** Warranty subject to terms & conditions |
|
